Specifition:
Nominal Diameter: 203/8 mm/in
Nominal Impedance: 8 Ω

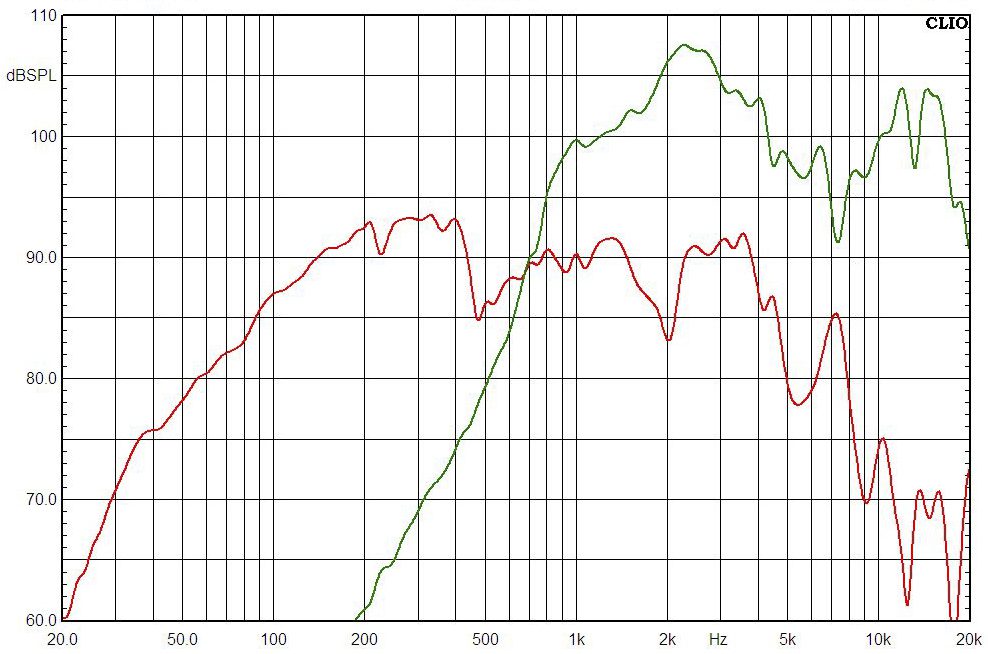

Frequency Range: 59 – 16000 Hz
Magnet Outer Diameter: 170 mm
Magnet Material: Ferrite
Overall Diameter: 225/208 mm
Baffle Cutout Diameter: 185 mm
Boit Circle Diameter: 210*8-Φ7
Flange and Gasket Thickness: 10 mm
Overall Depth: 117 mm
Net Weight: 5.1 Kg
