Specifition:
Nominal Diameter: 305/12 mm/in
Nominal Impedance: 8 Ω
Minimum Ipedance: 4 Ω
Power Handling: 300 W
Sensitivity (1w/1m): 96.2 dB

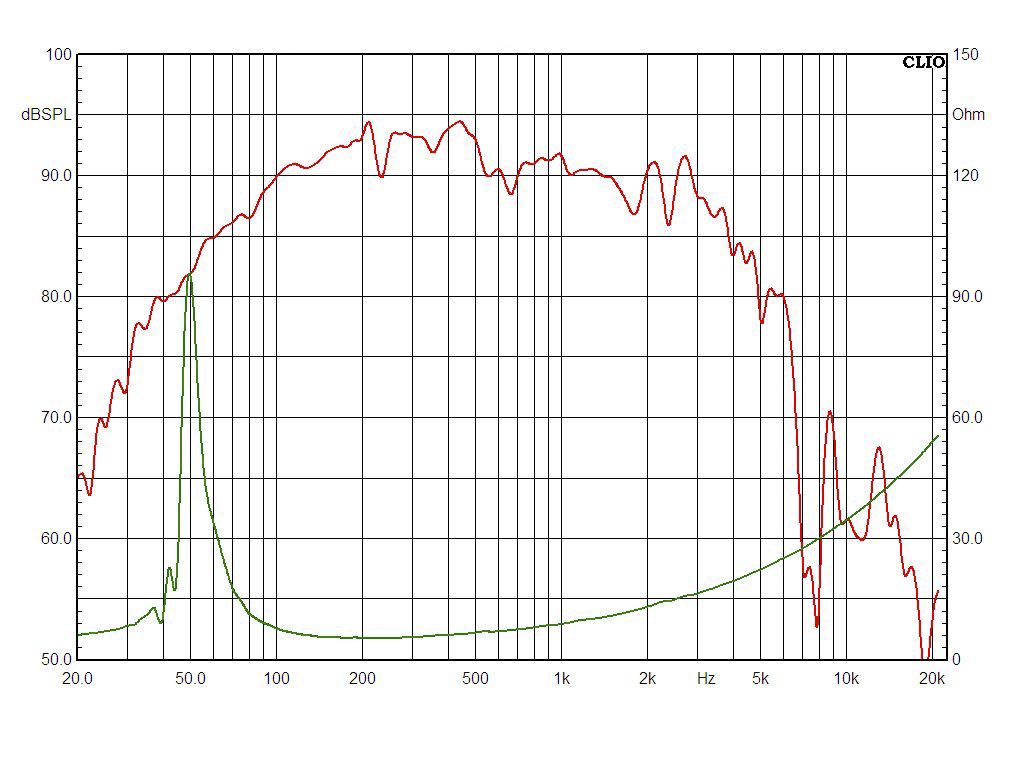

Frequency Range: 49 – 3000 Hz
Voice Coil Diameter: 65.5 mm
Voice Coil Material: EISV
Kind of Layer: Outside
Magnet Outer Diameter: 170 mm
Magnet Material: Ferrite
Overall Diameter: 314 mm
Baffle Cutout Diameter: 280 mm
Boit Circle Diameter: 295*8-Φ6.5
Flange and Gasket Thickness: 16 mm
Overall Depth: 141 mm
Net Weight: 5.2 Kg
